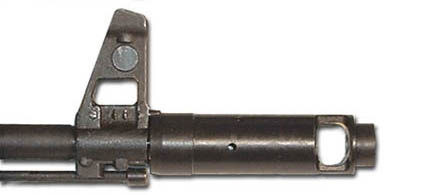

| Pictured
above is what the homemade version looks like. Not
bad for being much cheaper then the actual thing.
You will need to have some basic shop skills to
complete this build along with tools listed below:
A Drill Press
A Set of Common Drill Bits
A Pipe Wrench (or a die tool)
A Basic Lathe or Grinder(either will work)
A Set of Allen Wrenches
A Emory Cloth
Masking Tape
Teflon Tape
|
|
Before we begin you will need to order the parts
pictured to the left from KVAR
AK205 - Retainer pin, w/spring for muzzle nut
AK256 - Retainer pin, for AK74 plunger pin
AK141 - AK74 Romanian Compensator (if K-VAR is
out of these I think Global
Trades sells a US version in 22mm)
|
|
You will also need to purchase a 22mm X 1.5 die
from MSC Direct
Since this thread size is rare, they are expensive.
This part will set you back about $20 which is
still cheaper then purchasing the front sight
base.
PART # 03867017
|
|
 |
| And finally,
as pictured above, you will need to purchase a 7/8"grade
8 hex bolt and a 10-32 Allen Set Screw (preferably
at least 2" in length) from your local hardware
store. |
